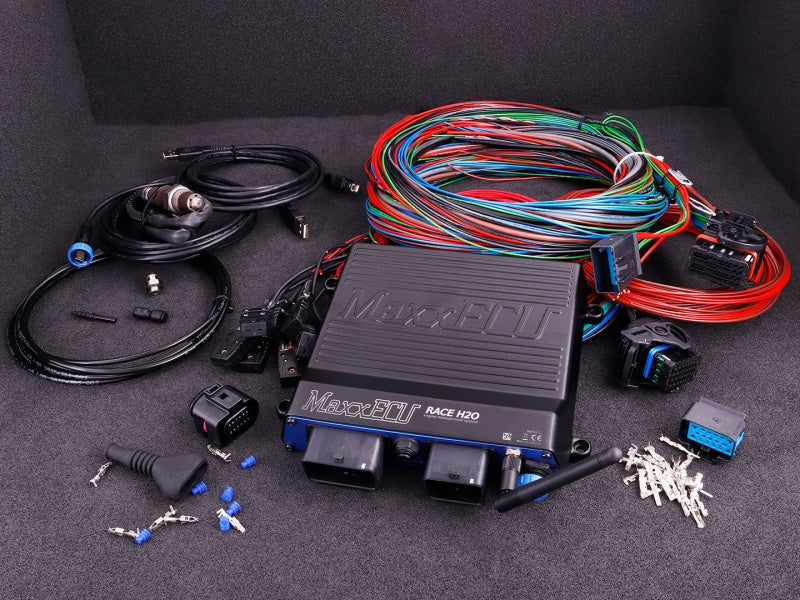

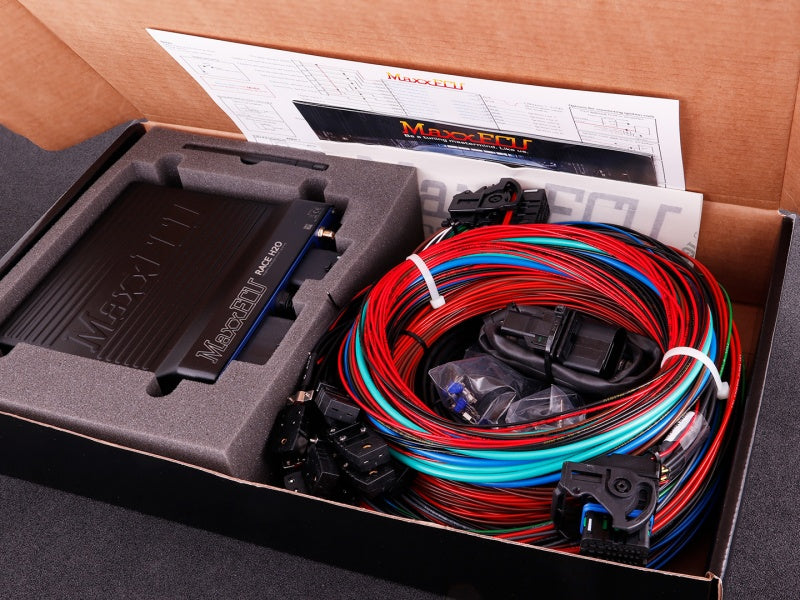

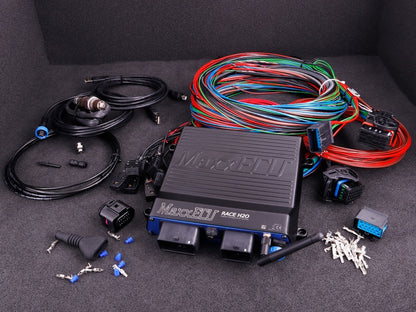

MaxxECU RACE H2O PREMIUM (ECU, harnesses, accessories, LSU 4.2)

MaxxECU RACE, based on our MaxxECU PRO and uses the same easy to use, yet powerful MTune software.

Specification

• Waterprotected (IP67)
• All 3-12 cylinder engines (4-stroke)
• Up to 8 cylinders fully sequentially
• Up to 12 cylinders in wasted spark
• Lambda (WBO) sensor. Supports Bosch LSU 4.2, 4.9
• 2 trigger inputs. VR or digital. Automatic trigger level detection
• 2 extra temperature sensors
• 2 knock sensor inputs
• 6 extra 0-5V inputs
• 4 extra digital inputs (VR / hall) or switches
• 8 EGT TYPE-K/N inputs (1200C/2200F) in separate harness
• 8 peak/hold injector outputs
• 8 ignition outputs
• 9 extra LOW DRIVING outputs for additional features
• 2 extra +12V DRIVING outputs
• 4 extra motor outputs
