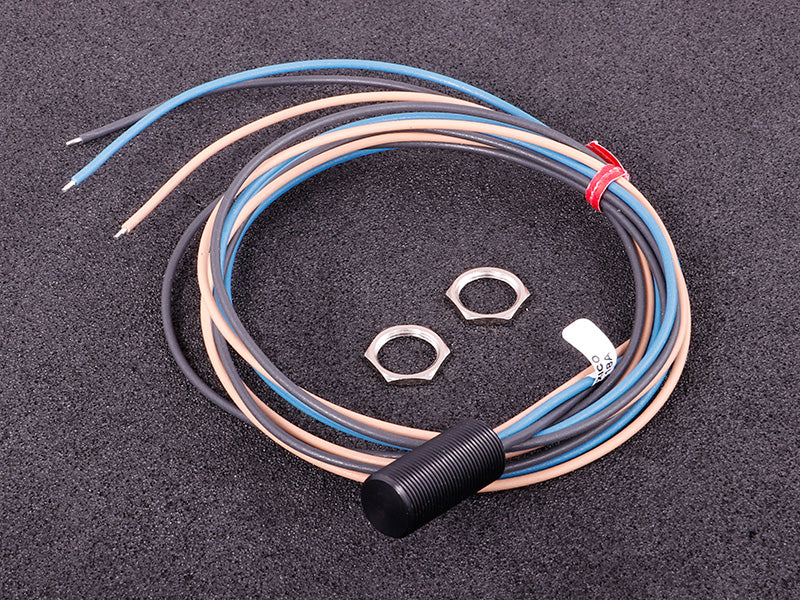

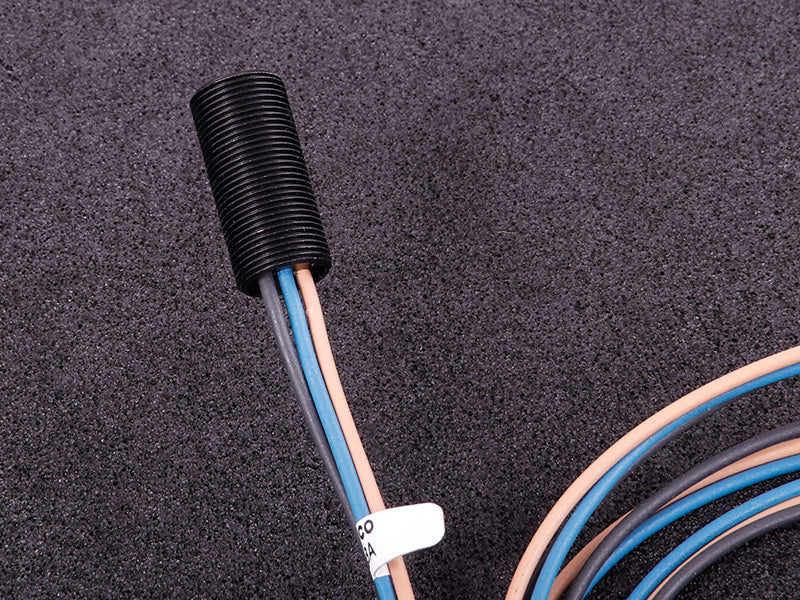

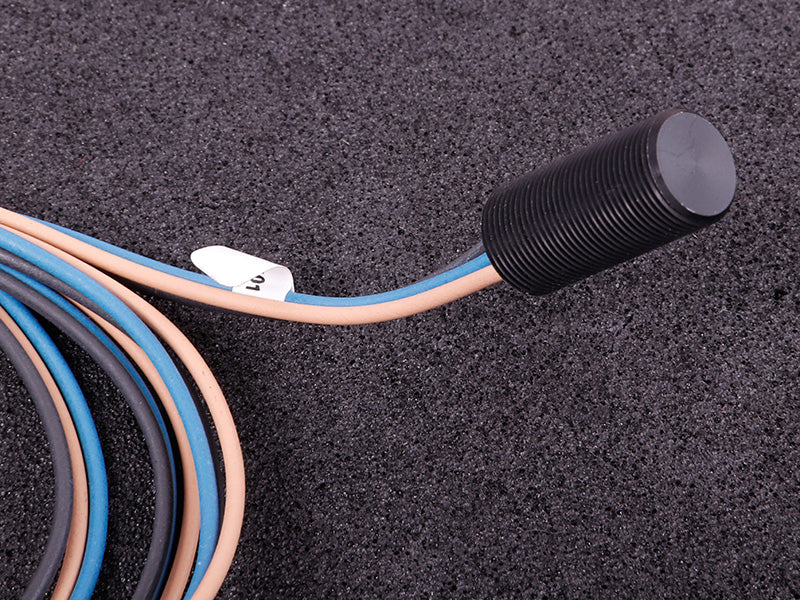

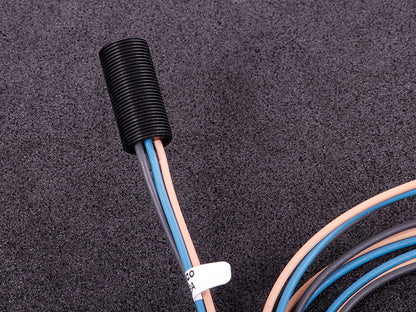

Cam position sensor, digital (short)

Digital cam position sensor for detection of cam position.

Pulldown output. Requires pull-up resistor (usually built into the ECU).
Detects targets of steel. 5-24v power supply.
Including nuts for mounting the sensor.

This also serves as a general crank trigger (tested with 60-2 trigger wheel up to 8000rpm with MaxxECU).

Brown: +5-24v
Black: Output
Blue: Sensor GND
15/32-32 thread, 25mm long.
